$90.00

CHEAP & CHEERFUL PHONO PRE-AMPLIFIER

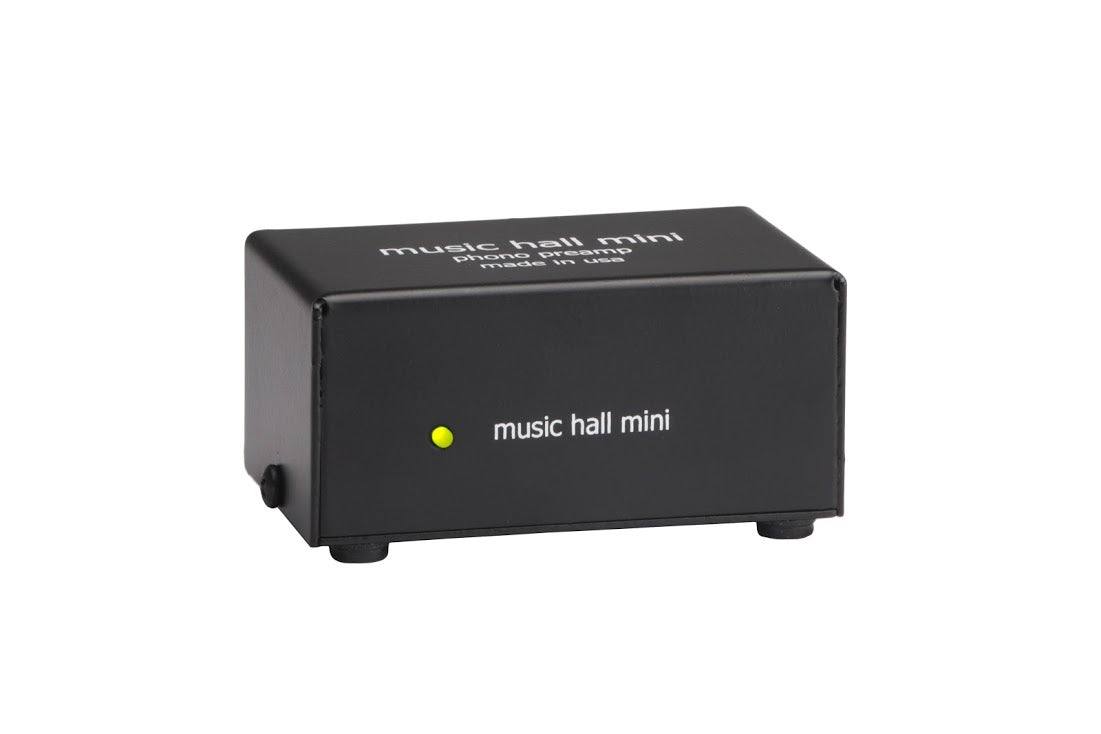

THE MUSIC HALL MINI IS A SOLID STATE MOVING MAGNET PHONO PREAMP FOR USE WITH MOVING MAGNET AND HIGH OUTPUT MOVING COIL CARTRIDGES.
The mini is designed to amplify an RIAA equalized phono signal to a high level signal. The music hall mini is cheap, cheerful, and built in the USA.
    • RIAA Equalization +/- 1.5 dB, 20Hz to 20kHz
    • Steel Chassis
    • i/o connectors: rca, 3.5mm trs stereo
    • External Power Supply
    • Moving Magnet Only

    TECH SPECS

    • I/ O Connectors: RCA, 1/8″ TRS Stereo
    • Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
    • Input Capacitance: 120pf
    • Sensitivity: 5mV for 635mV output
    • Input Impedance: 50k Ohms
    • Output Impedance: 1K Ohms
    • Frequency Response: + / – .5 dB 20 Hz – 20 kHz
    • (Conforms to RIAA Equalization Curve)
    • THD .01% @ 1 kHz
    • S/N Ratio: >83 dB unweighted
    • PWR: 9 – 15 VDC

    Dimensions: 3.25 w x 2 d x 1.5 h in.
    Weight: 1.5 lbs.
    Warranty: 1 yr.
