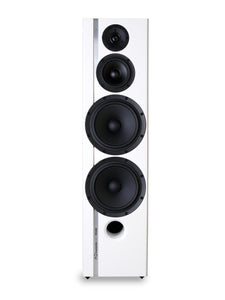

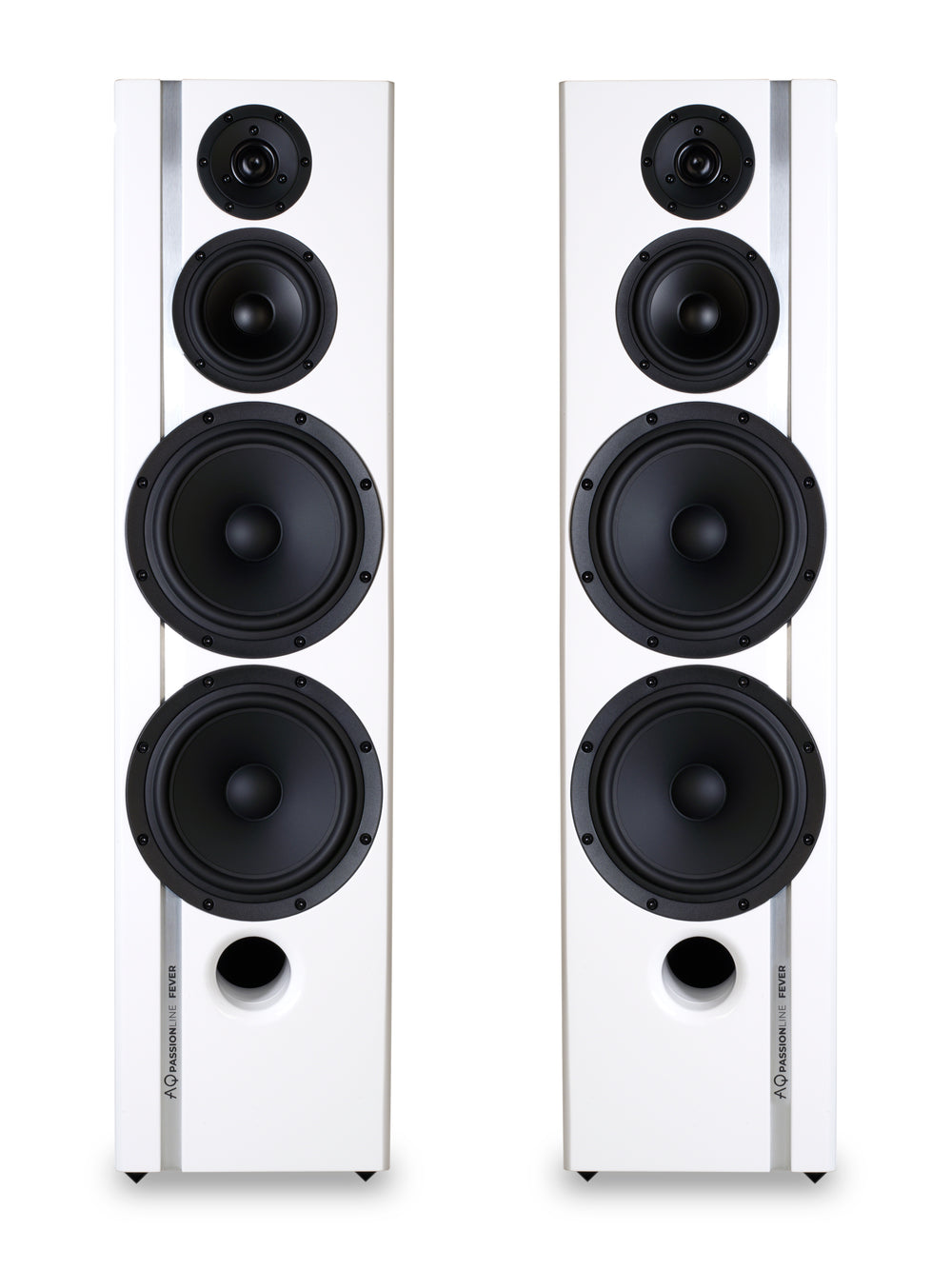

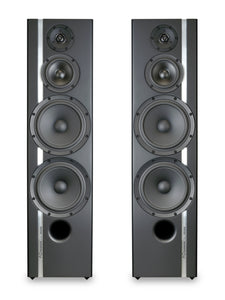

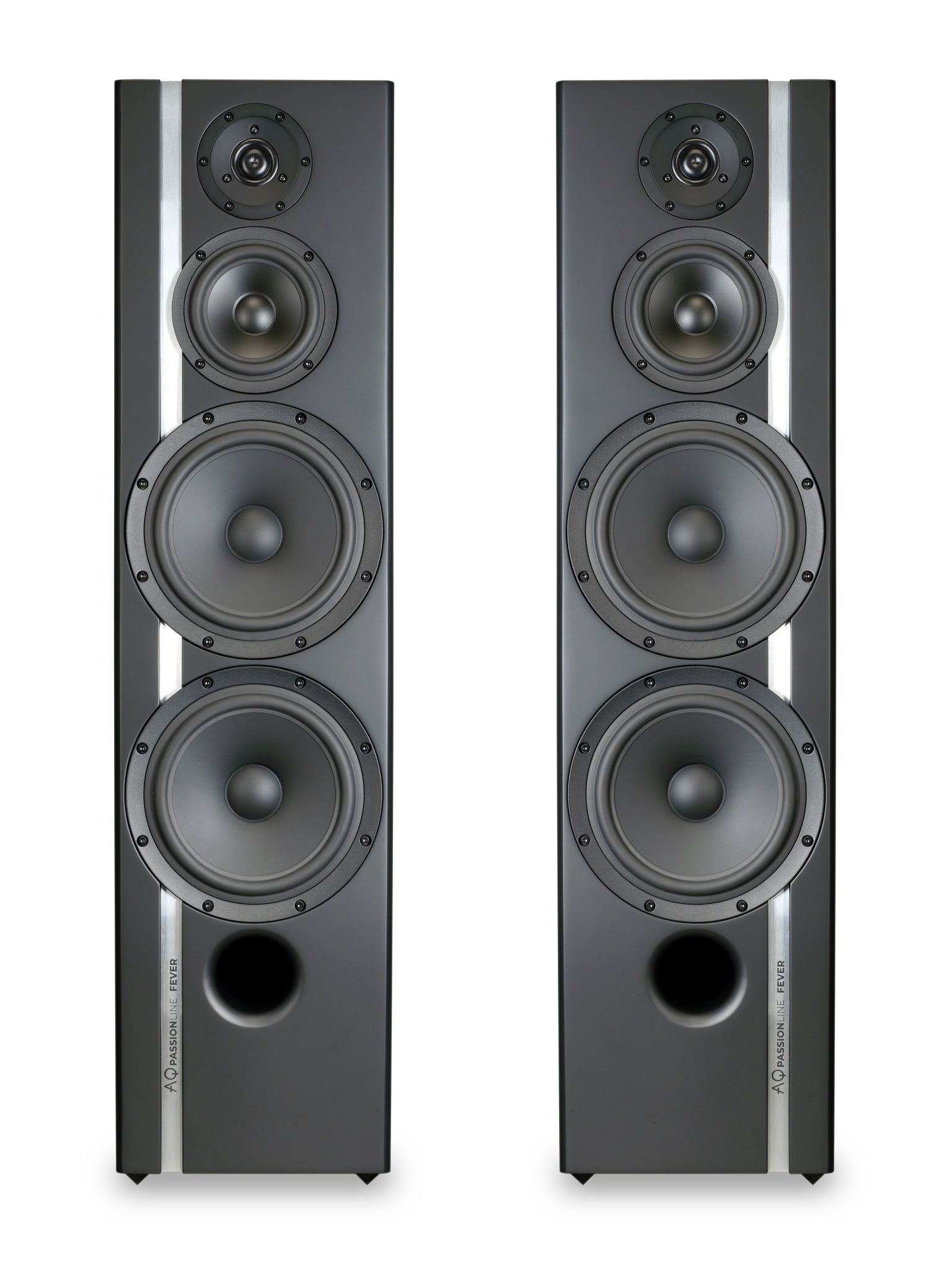

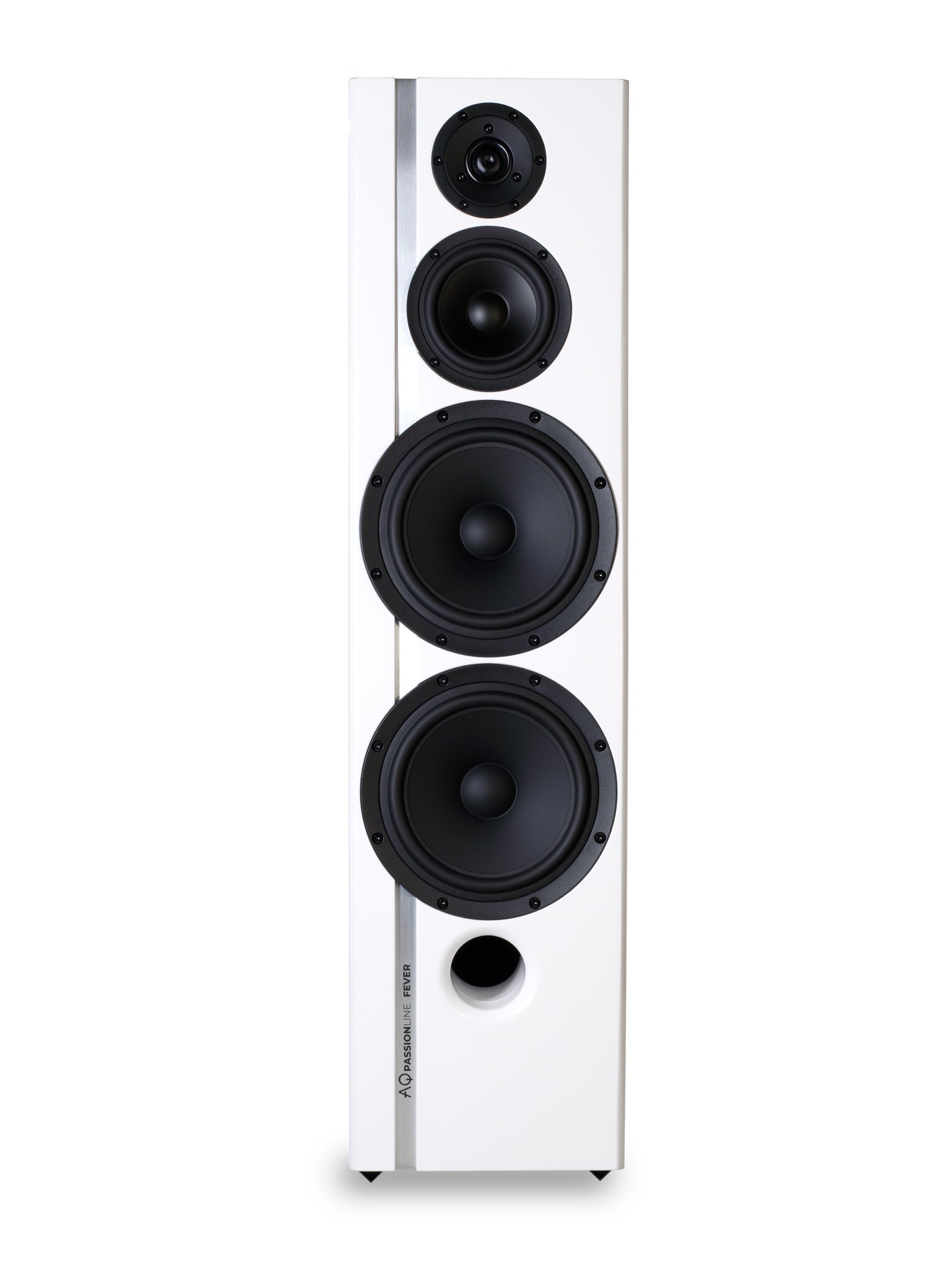

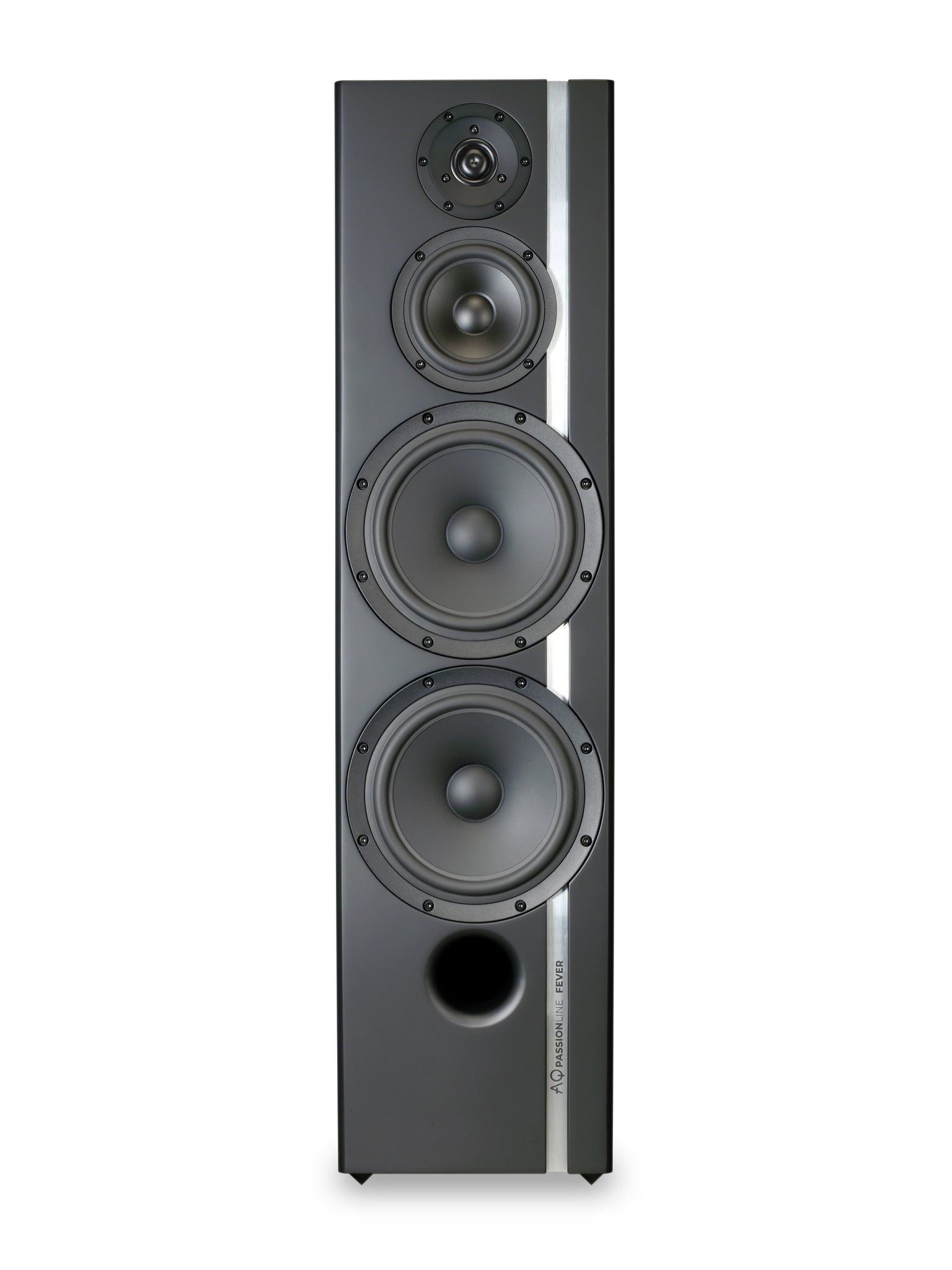

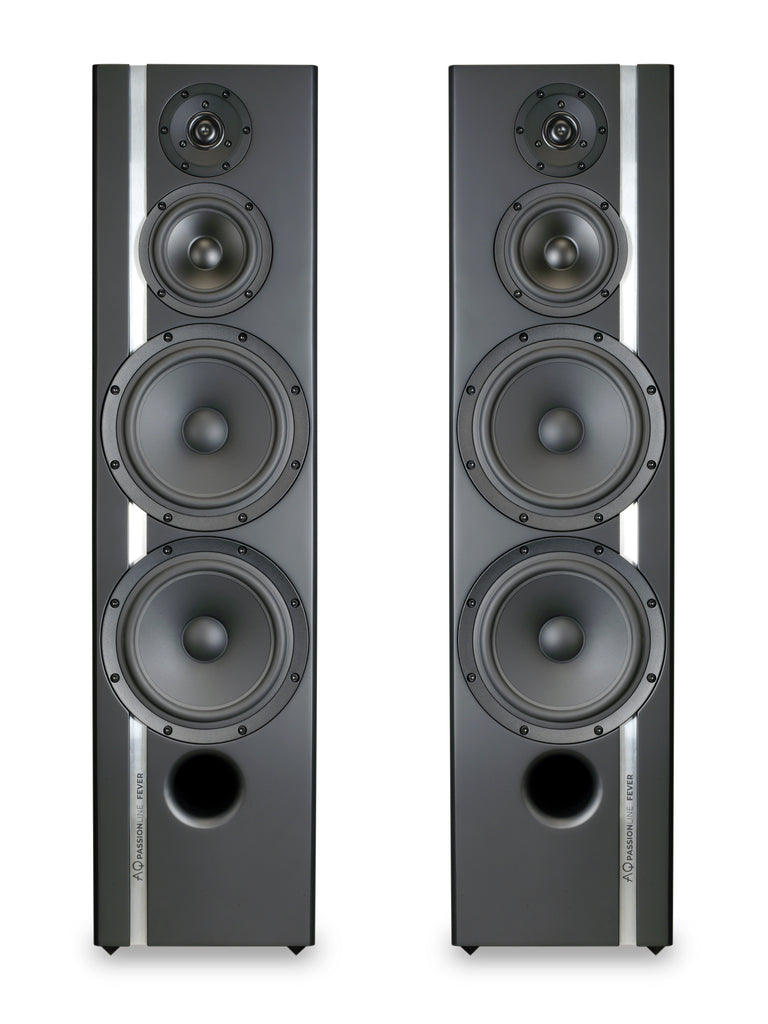

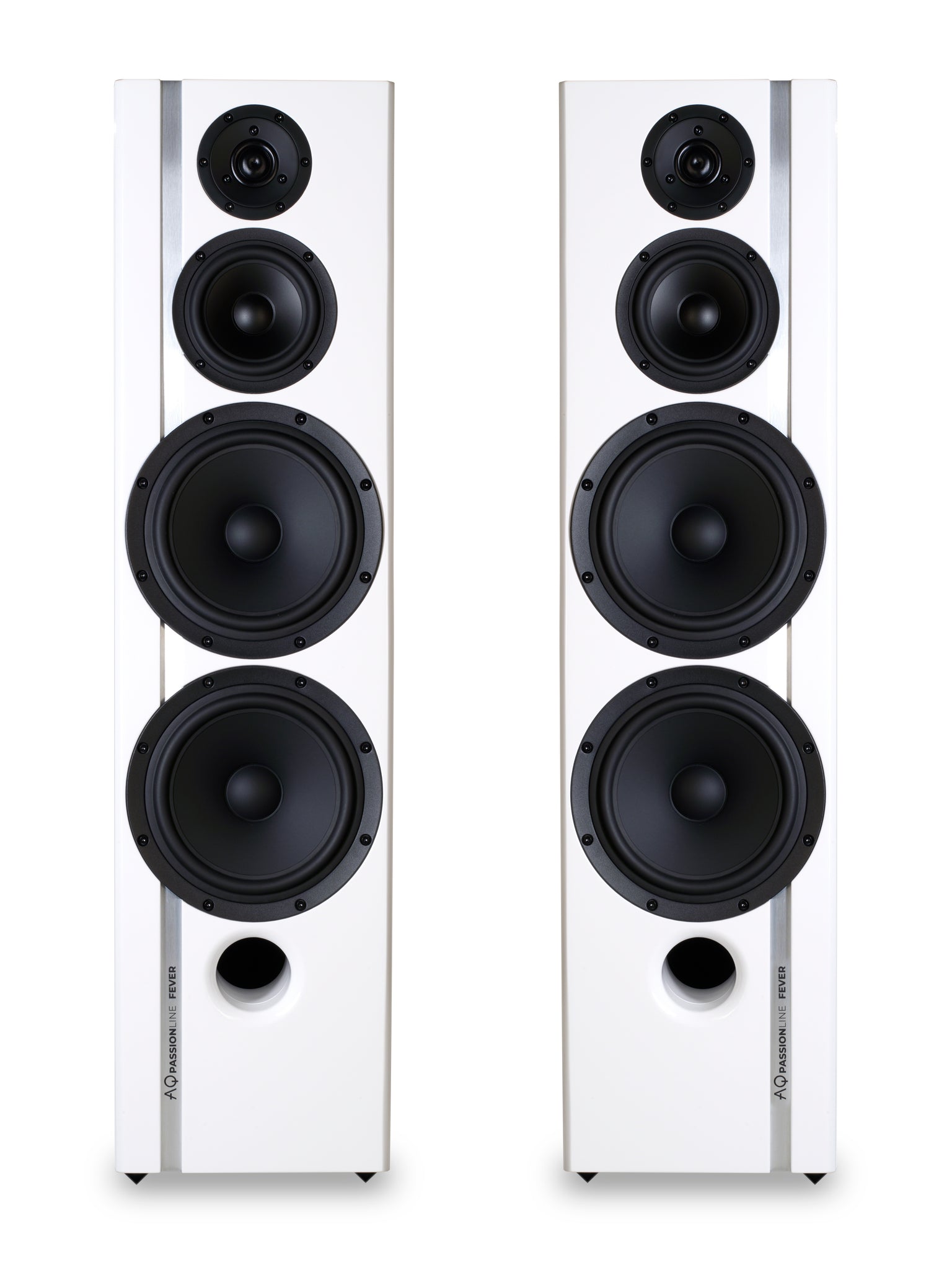

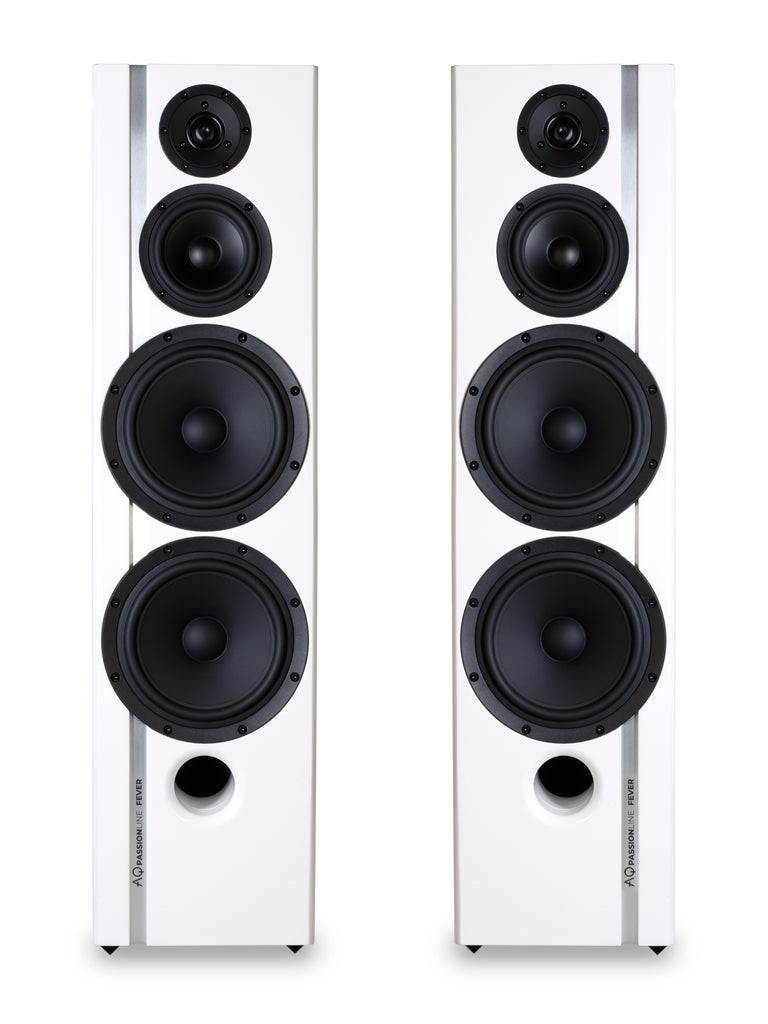

ACOUSTIQUE QUALITY PASSION FEVER LOUDSPEAKER PAIR

AQ'S FLAGSHIP MODEL
ELEGANTLY SIMPLE TECHNICALLY COMPLEX

Passion FEVER - three-way speakers with MDF panel construction with active damping system

The acoustically inert baffle of this 3-way speaker consists of a sandwich construction made of MDF panels, which also uses a unique BDS active damping system. The cabinet is further reinforced with several full-circumference and cross braces and a robust front sandwich 3D wall, in which a bass-reflex is fitted, milled from multilayer MDF. Adjustable dematerializing tips are installed on the lower base for perfect vibration elimination.

The installation of 3-way speakers with a front bass reflex combines the most interesting from the catalog of the progressive company SB Acoustics, highly valued for the excellent sound qualities of its products. Two 8 "woofer drivers, one midrange transducer with a polypropylene conical diaphragm on a rubber suspension and a Ring-Dome tweeter with anti-resonance diaphragm guarantee dense dynamic sound with well-rendered space and fine detail. one of the steps to achieve an extremely equal phase characteristic.

The advantage is the orientation of the acoustic axis of the speaker directly on the seated listener, and at the same time, thanks to the recessed placement of the speaker baskets, diffraction at the edge is eliminated. All components are soldered by the D2D method at the connection points on the thick panel, thus eliminating limiting printed circuit boards. Proven ROCKET 33 wires from the American company AudioQuest are used as internal wiring. During the development of the Passion FEVER, many technologies were used, also used in the most expensive AQ speakers - the flagship PASSION. Thanks to its sound qualities and perfect workmanship, AQ Passion FEVER will find it very difficult to find competition in its class.

• Scan-Speak 10" Revelator mid-bass driver with advanced carbon fiber reinforced paper cone and resulting in extremely low distortion and high power capability
• Latest 1" Scan-Speak Illuminator tweeter housed in its own chamber
• Tweeter membrane features a toroid shape rather than the typical sphere producing outstanding flat frequency response. Six neodymium magnets positioned in the AirCirc rear chamber create a permanent magnetic field.
• Midrange features Scan-Speak symmetrical drive SD-3, where the magnetic field is generated by neodymium magnet. Sophisticated cone with integrated flat ridges suppresses standing waves in the cone.
• Spatial 3-D modeled curved front baffle is key in achieving flat frequency response

• BDS cabinet damping and non-reflective internal panels eliminate standing waves inside speaker cabinet
• Acoustic axis of the speaker is directed toward the seated listener, not the floor as is common with most loudspeakers

• Cabinet is reinforced by unique pockets with steel vibration absorbing beads
• Custom 5-way speaker terminals feature machined polyethylene plate and solid core gold plated copper connectors

• Audioquest Castle Rock internal wiring
• Bi-wireable or bi-ampable
• Front ported bass-reflex design for flexible placement

• System: 3 - way

• Impedance: 8 Ω

• Max. noise: 120 W

• Max. short time: 240 W

• Sensitivity: 90 dB / 1 W / 1 m

• Frequency response: 23 Hz – 30 kHz within 4 dB

• Crossover: 12 dB / oct

• Internal volume: 61 l

• Dimensions (w x h x d): 256 mm x 1000 mm x 340 mm

• Weight: 35,6 kg

• Bassreflex

Warranty: 5 yrs.

Proprietary Design - Curved Front Baffle

Loudspeakers AQ Passion won prestigious international award for exceptional design and innovation  A’ Design Award & Competition 2015-2016 in category music, audio and sound design. This prestigious award is a symbol of design and innovation exceptionality.
