Five Channel Home Theater Amplifier

The GFA-5705 amplifier can drive a very broad range of loudspeakers, including those with very low impedances, at sustained high-power levels, even when the impedances are highly reactive. Great care was taken to insure that the distortion in the amplifier would remain extremely low.

The power supply in the GFA-5705 has enormous reserve with an extremely large transformer feeding a storage bank of 30000uF per channel & total of 150,000uF of filter capacitance. The transformer itself was designed for extremely good regulation, insuring stable voltages regardless of the power demands from the amplifier. Its higher efficiency was insured by using a toroidal design.

  •  Balanced XLR & unbalanced RCA inputs
  • 200 watts per channel, 8 ohms
  • 300 watts per channel, 4 ohms
  • Large outside double heatsinks
  • Auto ON/OFF with 12V Trigger
  • Covered 24k gold plated 5-way speaker terminals

THD+Noise at 200 Watts into 8 ohms all channels driven a 1kHz     .008%

THD+Noise at 300 Watts into 4 ohms all channels driven a 1kHz     .01%

Frequency Response 10Hz to 20kHz    +0. -0.25dB

Power Bandwidth (-3dB)     5Hz to 100kHz

Dynamic Headroom at 4 ohms    1.2dB

Signal-to-Noise Ratio, "A" Weighted, 200 Watts into 8 Ohms      >106dB

Gain   27dB

Input Impedance    22k ohms

Input Sensitivity   200 watts into 8 ohms              1.8V rms

Damping Factor            >300

Power: 120V AC 50/60 Hz, Max power consumption 2000VA

Max Dimensions:  8 3/4" x 17" x 17 3/4" with rear carry handles

Shipping weight: 96 lbs

Rack mounting: If rack mounted, the amplifier must be put on a shelf.  Rack mounting brackets are NOT available for this amplifier.

Two year limited manufacturer warranty

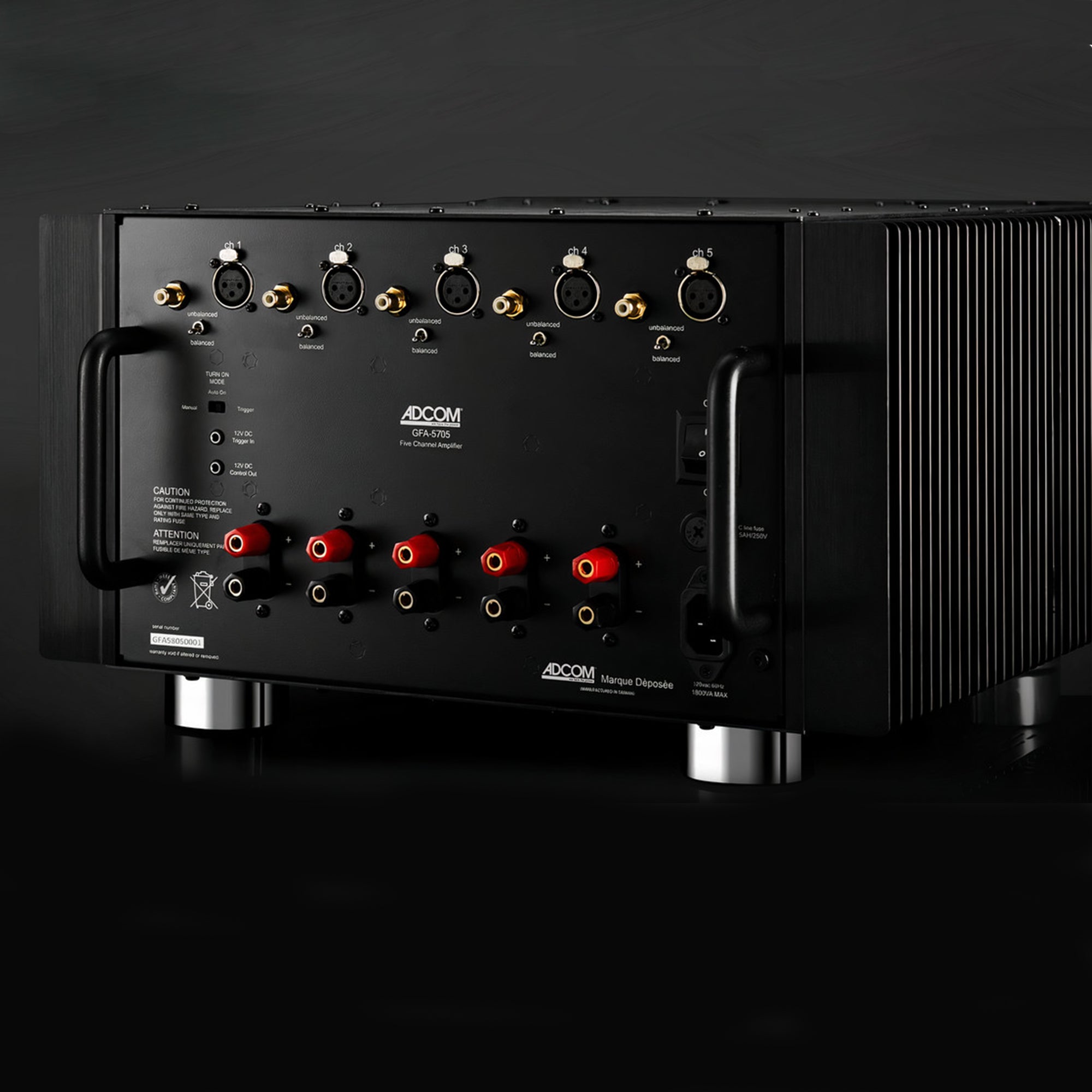

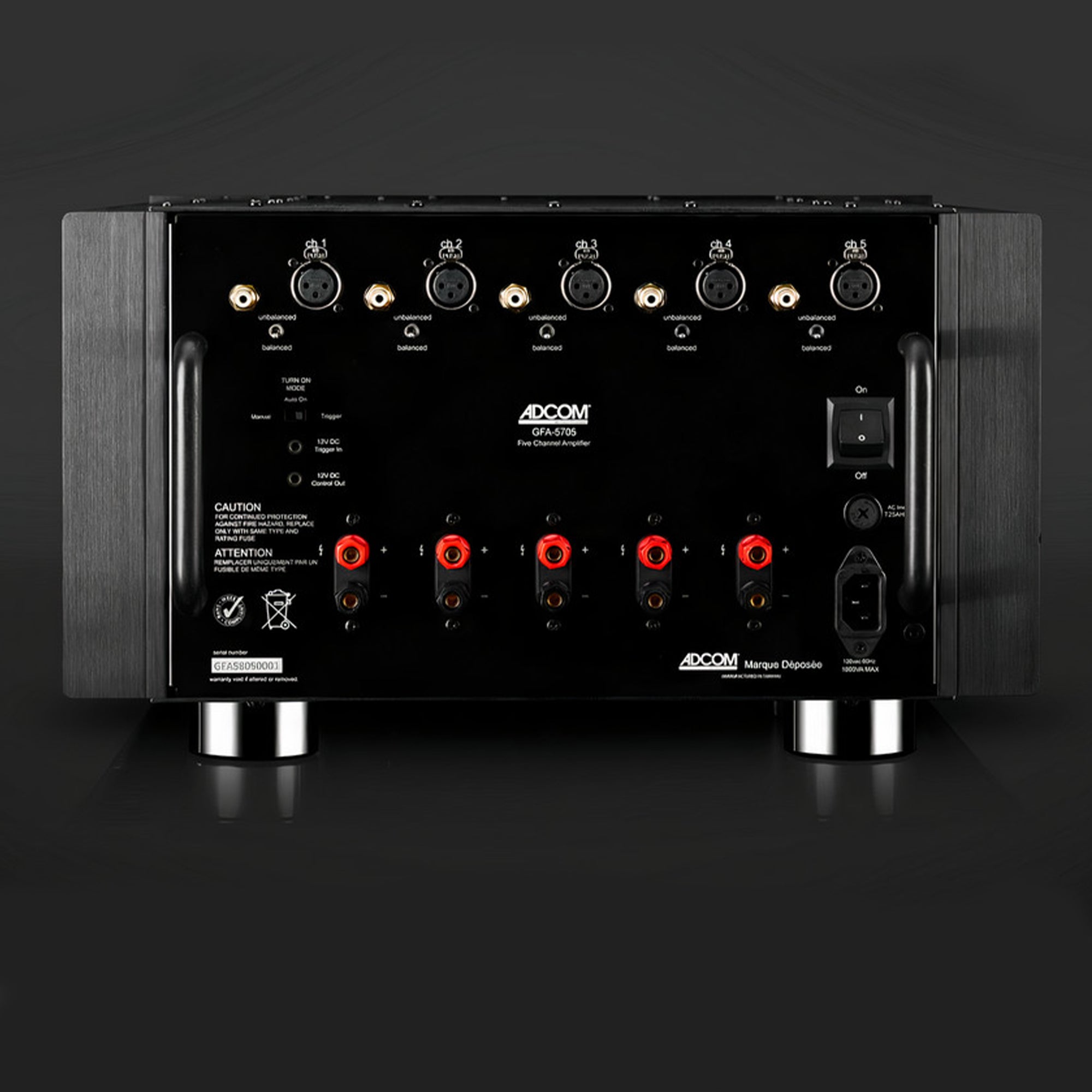

View High Resolution Image: REAR PANEL

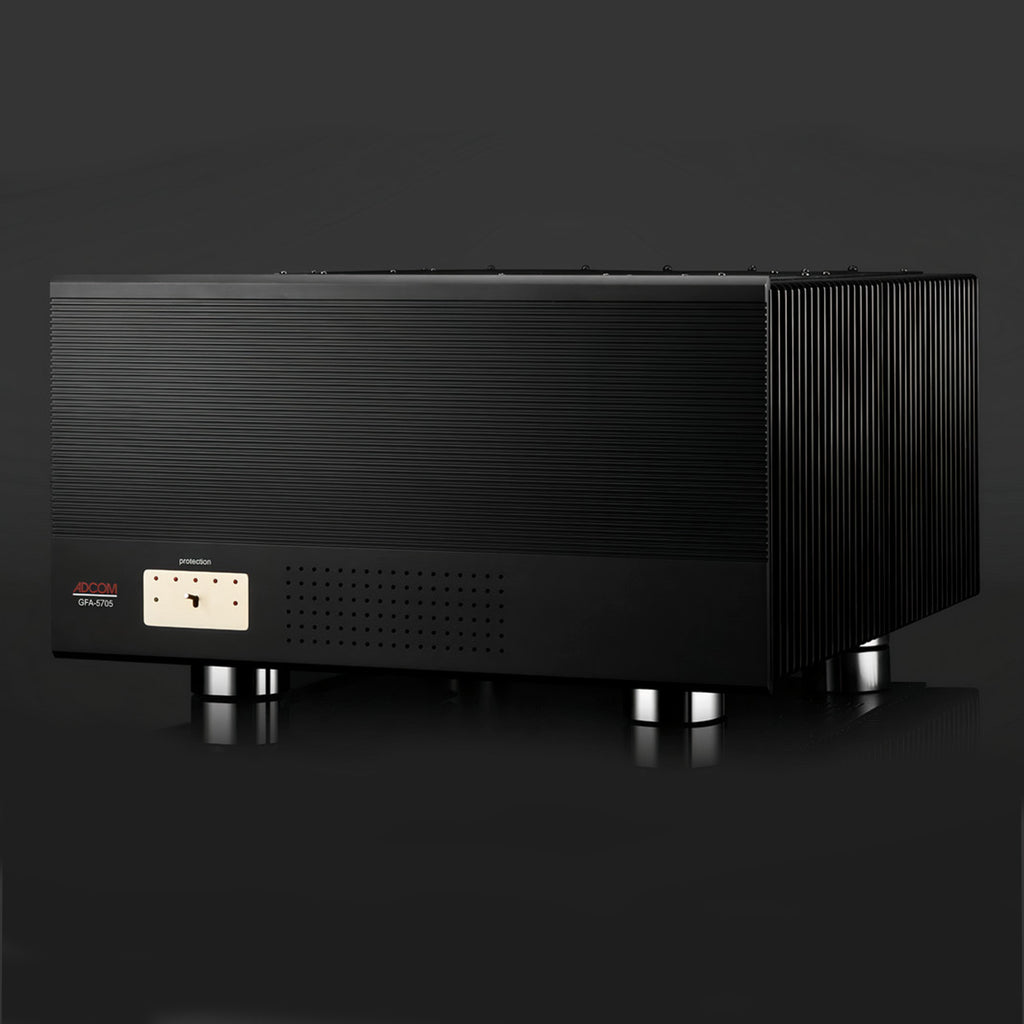

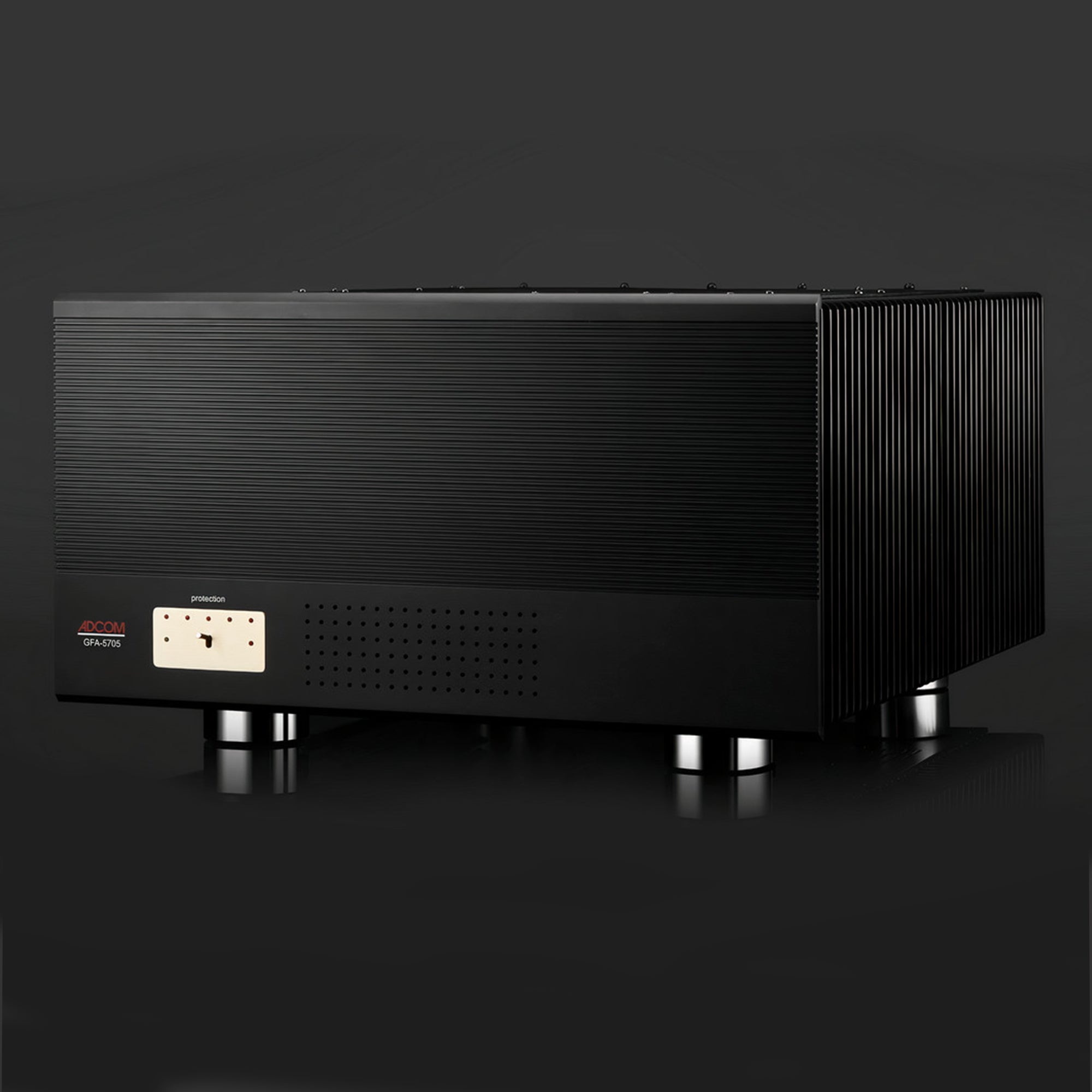

View High Resolution Image: FRONT - TOP - SIDE

DOWNLOAD USER GUIDE: GFA-5705 USER GUIDE

All circuitry meets ETL/ETLc, FCC, LVD and CE/EMC requirements using UL approved FR-4 printed circuit boards. High performance component selections include ultra low ESR electrolytic capacitors. The result is lower distortion, better dynamic range, improved damping factor and greater stability and separation of individual instruments on the sound stage.
