MUSIC HALL MMF-2.3 - box discount
ROCKING GOOD SOUND
Special Discount offered for less than perfect outer shipping carton.
Turntable is new and comes with full warranty.

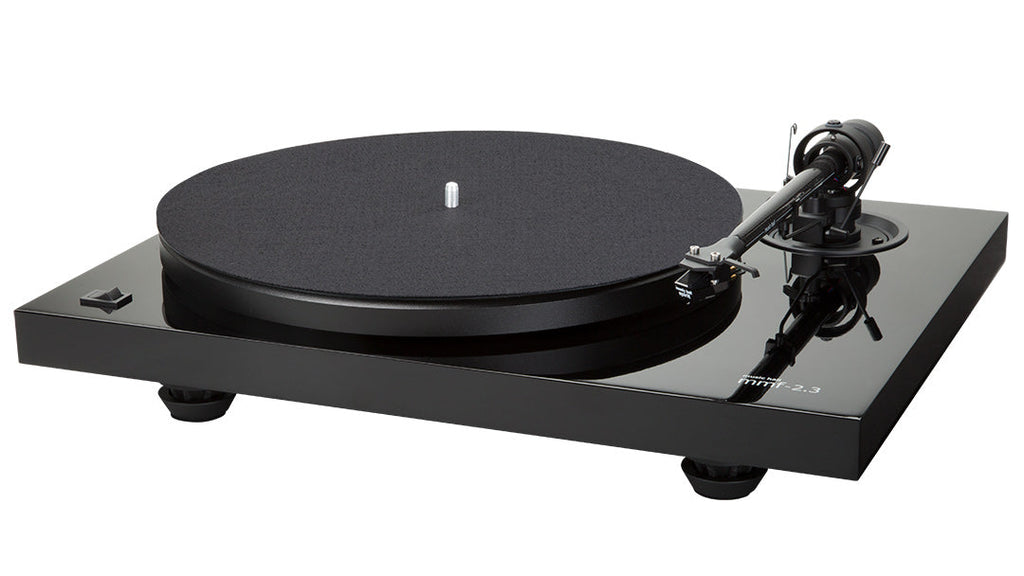

THE MUSIC HALL MMF-2.3 TURNTABLE IS A 2-SPEED BELT DRIVEN AUDIOPHILE TURNTABLE AT A BUDGET PRICE.
Constructed using high quality components, the mmf-2.3 has been simplified to focus on the critical components: bearing, motor, and tonearm.
A COMPLETE PACKAGE
The mmf-2.3 comes complete with a tonearm, dustcover, and precision mounted music hall spirit cartridge.
- Gorgeous high gloss piano black lacquer
- Special vibration damping adjustable feet
- Top tier 8.6” carbon fiber tonearm with aluminum headshell
- Fully adjustable VTA, azimuth, and dampened arm lift mechanism
- Tonearm features a 4-point gimbal bearing assembly using ultra-precision ABEC bearings
- Low noise fully manual belt-drive design
- Separately isolated DC synchronous motor for superior speed stability
- Two-speed stepped motor pulley for 33 1⁄3 and 45 rpm
- Music hall Spirit moving-magnet cartridge with replaceable elliptical stylus ($100 value)
- The cartridge supplied is properly aligned and mounted
- High precision stainless steel and bronze bearing assembly for quiet, fluid operation
- High quality gold RCA connectors with detachable phono cable
- Full-size alloy platter and felt mat
- Excellent instruction manual
- Quick and easy to assemble
- Dust cover and 45 rpm adaptor
|power supply||15V / 0-0.8mA DC
universal power supply
|power connection||100 – 240 Volt
50 or 60 Hz
|standby power consumption||< 1 W|
|speeds||33 1/3 rpm
(manual change to 45 rpm)
|wow and flutter||± 0.10 %|
|speed deviation||± 0.80%|
|rumble max||> – 68 db|
|effective tonearm length||8.6 in. (218.5 mm)|
|effective arm mass||7.0 g|
|product dimensions||w17″ x d13″ x h4.5″|
|weight||17 lbs. pkg.|
|Frequency Response||20Hz – 20kHz ± 3dB|
|Channel Balance||2.5dB @ 1kHz|
|Channel Separation||>20dB @ 1kHz|
|Output||3.5mV ± 2dB, 1kHz @ 5cm/sec|
|Vertical Tracking Angle||20 degrees|
|Stylus Shape||elliptical 0.4 x 0.7 mil|
|Load Impedance||47,000 Ohm|
|Stylus Construction||bonded round shank|
|Fixing Center||0.5” (12.7mm)|
|Playing Weight||1.5 – 2.5g (2.0g nom.)|
SHIPPING: The shipping weight of the Music Hall MMF-2.3 is 20 lbs. Shipment by FEDEX Home Delivery/Insured is FREE if your delivery addresses is within the 48 continental states. If your delivery address is in Alaska, Hawaii, Canada or other location outside of the USA, please call (480) 607-2277) or email email@example.com to determine the shipping cost and to place your order. Duties, taxes and fees on shipments to destinations outside of the USA are NOT included in the price.
