$4,500.00
Available for pre-order

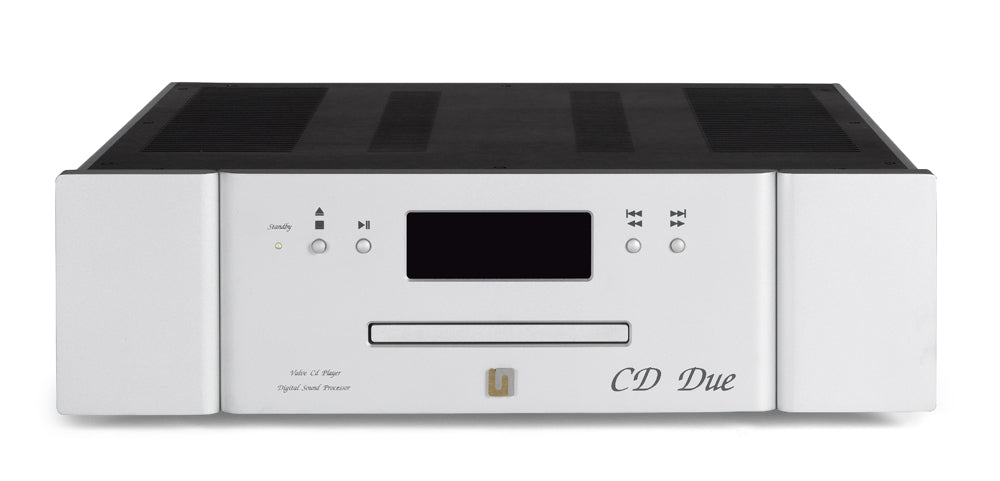

FLAGSHIP CD PLAYER / DAC


State of the art design. The Unico CD Due brings Unison Research right into the popular and versatile digital audio world. Not simply a CD player, the Unico CD Due combines a high-level DAC with a top-end CD mechanism. It’s feature-rich, flexible and customizable to the listener’s preference. A variety of external sources can be connected to the Unico CD Due, including a laptop or computer for playing all known audio formats, including DSD – via USB.

Digital Inputs
1 x USB
Standard: USB 2.0 Audio Class
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256 Ready
Resolution: 16 to 32 bits

1 x S/PDIF
Sensitivity: 0.5Vpp on 75 Ohms
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192, DSD64 (DoP)
Resolution: 16 to 24 bits

1x AES/EBU
Sensitivity: 2Vpp on 110 Ohms
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192
DSD64 (DoP)
Resolution: 16 to 24 bits

1x Toslink™:
Sampling Frequencies: 44.1, 48, 88.2, 96 (176.4 and DSD64 DoP with high efficiency transmitters)
Resolution: 16 to 24 bits

1 x Bluetooth™ Receiver
Standard: BT 3.0
Profiles: A2DP, SSP (HID supported with Android smartphones through SPP)
Sampling Frequencies: 44.1kHz, 48kHz
Resolution: 16 bits

Digital Output
1 x S/PDIF
Output voltage: 0.5Vpp on 75 Ohms

1 x AES/EBU
Output voltage: 2Vpp on 110 Ohms

1 x Toslink™

Transport
8829CD-KHM DVD-Loader , Only audio CD

Display
128 X 64 White OLED graphic display, (can be turned off)

Digital to Analog stage
DAC: ESS Sabre ES9018K2M with jitter eliminator
SNR: 125dB (0dBFS, 1kHz, 192kHz, “A” weighted)
THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
Timing: low phase noise, high precision crystal
oscillators

IV converter:
AD8597/AD8599 ultra-low distortion, ultra-low noise, use high-quality components like Wima capacitor and Vishay

Audio Output Stage:
channels: 2
Output stage: Double Triode, pure class-A, differential Totem-pole
Valve complement: 4 x ECC83 (12AX7)

Output audio connectors: 1 x RCA stereo, 1 x XLR stereo
Optional buffer: AD8597/AD8599 output buffer can be activated
by remote control normally bypassed by relay

General Specification:
Remote control: 1 x Infrared in wood and metal
Disc Formats: CD Audio
Power consumption: 100W max

      Dimensions: 17.7 w x 16.0 d x 5.1 h in.
      Weight: 22 lbs.
      Warranty: 2 yrs. limited electronics, tubes: 30 days


      Ask about our trade-in program



      SHIPPING The shipping weight of the Unico CD Duo is 26 lbs.  Shipment by FEDEX Home Delivery/Insured is FREE if your delivery addresses is within the 48 continental states. If your delivery address is in Alaska, Hawaii, Canada or other location outside of the USA, please call (480) 607-2277) or email sales@theaudiolegacy.com to determine the shipping cost and to place your order.  Duties, taxes and fees on shipments to destinations outside of the USA are NOT included in the price.
