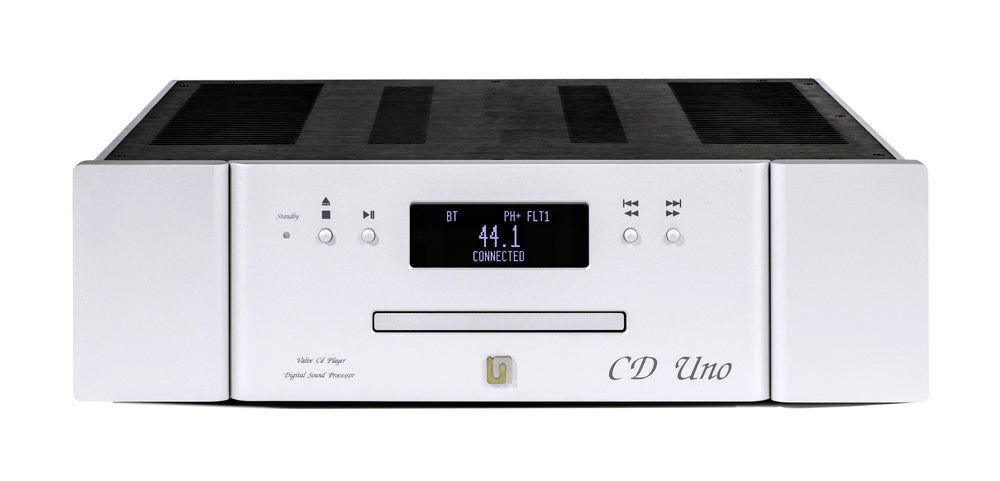

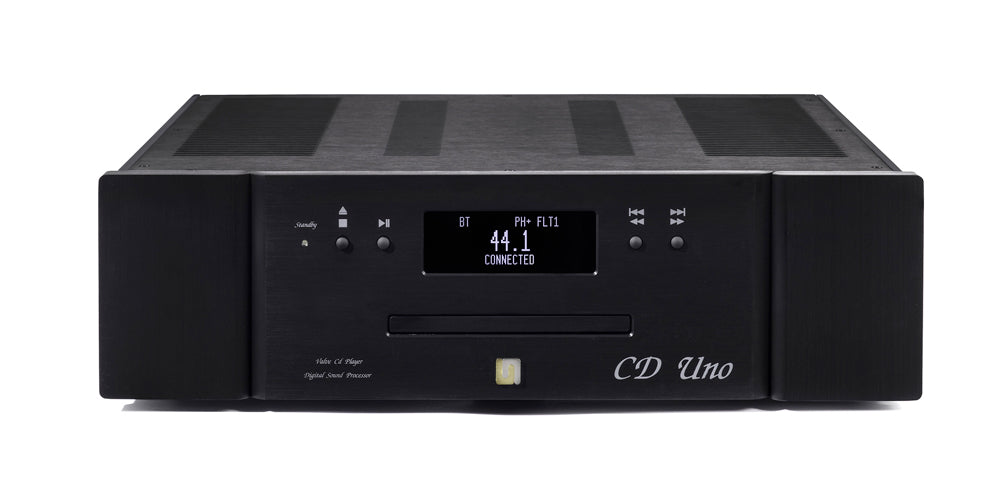

UNISON RESEARCH UNICO CD UNO
FULL FEATURED CD PLAYER / DAC
FINE ITALIAN DESIGN
After introducing the Unico CD Due last year, Unison Research is now confirming its presence in the world of digital audio with the new CD Uno.
The Unico CD Uno is a high-specification DAC with integrated CD mechanism that is flexible and customizable. The CD Uno combines Unison Research’s high-end sound quality with the broad playback possibilities offered by today’s digital audio solutions. The CD Uno will allow you to play back all the music formats and sampling rates currently available on the market.

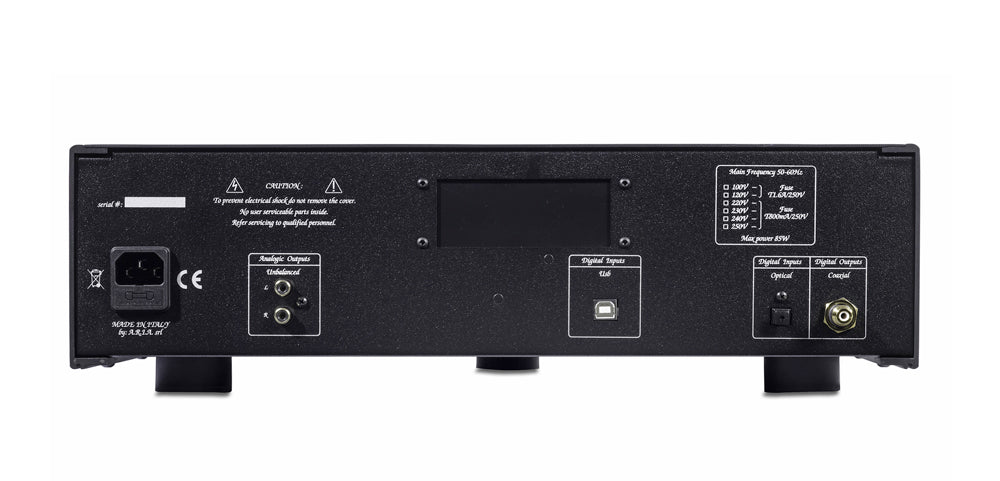

The Unico CD Uno boasts a wide variety of inputs and outputs. On the back-panel there are inputs for USB and Toslink TM cables, and built inside the housing is a BluetoothTM receiver that allows for wireless streaming from compatible devices.
The audio stage uses one ECC82 (12AU7) double triode, operating in pure class-A, followed by a solid state discrete buffer still operating in class-A for a low impedance output and ideal audio behavior. Aesthetically the CD Uno, like the CD Due, differs from existing Unico products with its new three- fold faceplate, white LEDs and white display. This same aesthetic will pass over to the new Unico 90 and Unico 150 amplifiers, which are designed to be perfect matches for the CD Uno and CD Due.
1 x USB
Standard: USB 2.0 Audio Class
Sampling Frequencies: 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, DSD64, DSD128, DSD256 Ready
Resolution: 16 to 32 bits
Sampling Frequencies: 44.1, 48, 88.2, 96 (176.4 and DSD64 DoP with high efficiency transmitters)
Resolution: 16 to 24 bits
1 x Bluetooth™ Receiver
Standard: BT 3.0
Profiles: A2DP, SSP (HID supported with Android smartphones through SPP)
Sampling Frequencies: 44.1kHz, 48kHz
Resolution: 16 bits
Output voltage: 0.5Vpp on 75 Ohms
8829CD-KHM DVD-Loader , Only audio CD
128 X 64 White OLED graphic display
Digital to Analog stage
DAC: ESS Sabre ES9018K2M with jitter eliminator
SNR: 125dB (0dBFS, 1kHz, 192kHz, “A” weighted)
THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
Timing: low phase noise, high precision crystal
NE5532AD high-performance, very low noise, use high-quality components like Wima capacitor and Vishay resistor
Audio Output Stage:
Output stage: Double Triode, pure class-A
Valve complement: 1 x ECC82 (12AU7)
Optional buffer: NE5532AD output buffer that bypass tube stage, can be activated by remote control
Remote control: 1 x Infrared in wood and metal
Power consumption: 100W max
Dimensions: 17.7 w x 16.0 d x 5.1 h in.
Weight: 22 lbs.
Warranty: 2 yrs. limited electronics, tubes: 30 days
SHIPPING: The shipping weight of the Unico CD Uno is 26 lbs. Shipment by FEDEX Home Delivery/Insured is FREE if your delivery addresses is within the 48 continental states. If your delivery address is in Alaska, Hawaii, Canada or other location outside of the USA, please call (480) 607-2277) or email firstname.lastname@example.org to determine the shipping cost and to place your order. Duties, taxes and fees on shipments to destinations outside of the USA are NOT included in the price.
