jbdistr

$1,200.00 $1,649.00

Sorry, this item is out of stock

DIRECT-DRIVE PRECISION
Analog Sonic Glory


OPEN BOX unit in excellent condition.
Includes 6 mos. limited warranty.

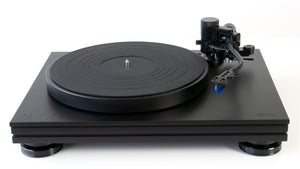

THE MUSIC HALL STEALTH TURNTABLE - MUSIC HALL'S FIRST DIRECT DRIVE TURNTABLE - STEALTH FEATURES A BRUSHLESS LOW-TORQUE MOTOR THAT AUTOMATICALLY STOPS RUNNING AT THE END OF A RECORD.

The Stealth is a 3-speed direct drive turntable that comes complete with an S-shaped tonearm, a detachable headshell, and a  factory-mounted, precision aligned Ortofon 2M Blue cartridge.

This substantial 24-pound turntable attenuates external vibrations by utilizing what Michael Fremer notes is “an unusually heavy, multi-layer and well-damped chassis as well as large, viscous-elastomer damped height-adjustable feet and a 4 pound, elastomer-damped…aluminum platter”.

"Music Hall waited more than 20 years before launching a direct drive turntable. It was worth the wait..."

    -Michael Fremer, Analog Planet


Ortofon 2M Blue cartridge included and precision mounted




easily adjustable on-the-fly VTA




touch sensitive controls




"tap tests...performed better than some turntables costing 3x more."
       - Analog Planet

  • Direct drive design
  • Low torque, brushless motor
  • Touch-activated electronic speed control
  • 33 1⁄3, 45, and 78 rpm
  • Motor automatically stops at the end of the record
  • Automatic standby mode activated after 20 minutes of non-use
  • Aluminum tonearm with  VTA that can be adjusted while the record is playing
  • Removable head shell
  • Ortofon 2M Blue cartridge ($230 value) comes pre-mounted and precision-aligned
  • 4-pound aluminum platter
  • Vibration-damping rubber platter mat
  • Vibration-damping feet
  • Cloth dust cover
  • Removable RCA cables

Dimensions: 17.8 w x 14.2 d x 5.8 h in. (435 x 361.7 x 146.7 mm)
Weight: 24 lbs.
Power Supply: DC12V,2.0A universal power supply
Warranty: 6 mos. limited

1. GENERAL SECTION

     Power Supply: DC12V2.0A
     Standby Power consumption:
Less than 0.3 W, Auto-stop after 20 minutes

2. FEATURES

     Turntable Type: 3-speed full manual, Auto stop
     Cartridge Type: Moving-magnetic cartridge
     Motor: Direct drive
     Driving Method: Brushless motor (Low torque)
     Turntable Platter: 305mm (12”) dia. Aluminum die-cast
     Speed: 331/3, 45, and 78rpm

3. Audio Specifications

      Wow and Flutter: Less than 0.07% WTD at 3kHz RMS (CD-4005)
      Wow and Flutter: Less than 0.12% WTD at 3kHz RMS (CD-4005)
      Signal-to-noise ratio (for MM): More than 70dB DIN-B (SS-4242)
      Speed Tolerance: Constant Speed 3000Hz +/-0.3% (CD-4005)
      Channel Separation: More than 20 dB at 1kHz (CD-4005)
      Channel Balance: Within 1.5 dB at 1kHz (CD-4005)
      PHONO Output Level: 5.5mV -3dB/+1dB:
      3.894mV~6.172mV at 1Khz 5cm/sec (CD-4005)
      Frequency Response (Phono Output): 20Hz~20kHz +/-0.5dB
      (Signal input: -54dBV: 20Hz~20kHz +/-1dB
      Brushless motors torque (Direct drive): More than 1.2kg

4. CARTRIDGE: Ortofon 2M (Blue)

     Output Voltage: 5.5mV at 1 kHz, (5 cm/sec)
     Channel Separation: Measurement point 1KHz over 25dB
     Channel Balance: 1.5dB or less at 1kHz
     Frequency Response: 20Hz ~ 20kHz +2/-1 dB
     Vertical Tracking Force: 1.6~2.0g (1.8g, Recommended)

5. TONEARM SECTION

     Type: Static balanced S-shaped tonearm with detachable head shell
     Effective Arm Length:
230mm (9”)
     Overhang: 15mm (0.59")
     Offset angle: 22°
     Tracking Error Angle:
Less than 3 degree
     Applicable cartridge weight: 6~10g
     Anti-skating adjustment range: 0~4g
     Height of cue (first track): 8~10.5mm
     Descent time of cue: 1~3 sec
     Inner null point:
58.8mm
     Outer null point:
113.52mm

6. ACCESSORIES SUPPLIED

     Instruction manual x 1
     Counter weight x 1
     Additional counterweight, Sub weight x 1
     Platter x1
     RCA cable x 1

     Power Adapter x 1
     45 rpm adaptor x 1
     Rubber mat x1
     Head shell assembly x 1
     Ground wire x 1
     Cloth dust cover x 1
     Transfer plug x 4 (UL/PSE x1, VDE x1, UK x1, SAA x1)

Ask about our trade-in program



SHIPPING: The shipping weight of the Music Hall Stealth is 27 lbs.  Shipment by FEDEX Home Delivery/Insured is FREE if your delivery addresses is within the 48 continental states. If your delivery address is in Alaska, Hawaii, Canada or other location outside of the USA, please call (480) 607-2277) or email sales@theaudiolegacy.com to determine the shipping cost and to place your order.  Duties, taxes and fees on shipments to destinations outside of the USA are NOT included in the price.
