VINCENT SV-737 INTEGRATED AMPLIFIER
POWERFUL SWEET SOUNDING BEAST OF AN INTEGRATED
Built-in 24/192 DAC
Vincent's new SV-737 flagship integrated amplifier is a technically-advanced hybrid tube and solid state stereo design with built-in D/A converter and includes wireless connectivity via Bluetooth and WiFi. It supports streaming and can play music files stored on a NAS drive. The onboard DAC is a Texas Instruments PCM5102 offering file playback up to 24-bit / 192 kHz.
"Its best traits were its see-through, near-rich midrange and generous, tight low end that added a little warmth to most music—plus, it comes with a more-than-solid, detailed, musical DAC. The SV-737 pushed my happy buttons whether I was listening to black discs or digital sources."
Ken Micallef, Stereophile
"It's a powerful beast of an integrated that can probably drive just about any loudspeaker."
The SV-737 sets new standards with its circuitry. The preamplifier and power amplifier sections have been matched perfectly to one other, working effortlessly together to achieve maximum transparency and full-frequency wideband audio output. The SV-737 has an impressive dynamic range and plenty of power to make your music come alive as never before.
Both the preamplifier and amplifier sections of the SV-737 are the latest developments from Vincent's audio engineers. The tube-based preamplifier section, borrows the basic principle of two gain blocks with integrated defeatable tone controls from Vincent's highly regarded SA-T7 preamplifier.

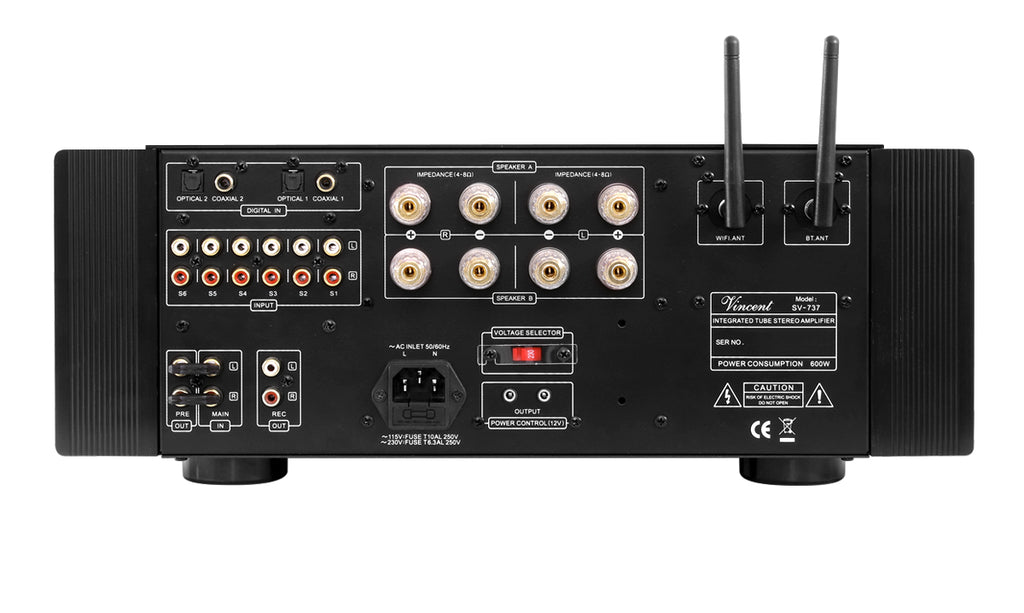

Connectivity consists of six stereo RCA inputs, two optical inputs, two coaxial inputs, and a Stereo Main input. Outputs are one Stereo Pre-Out, one Stereo Rec Out, and two pairs of speaker binding posts. There is also a front-panel headphone jack. Additionally, there are two 3.5 mm 12V trigger jacks, a jack for the included WiFi antenna, and a jack for the included Bluetooth antenna.
Breakthrough Preamplifier with Two Double Triodes per Channel
In contrast to Vincent's SV-237MK integrated amplifier, an additional tube section has been provided for each channel, so that two double triodes per channel with a total of four sections are employed.
The voltage amplification is provided by the 6N2P-EV tube, manufactured according to military specifications. It has a characteristic curve that is similar to the well-known ECC83 or 12AX7, yet it is more linear for even greater fidelity to the source material. In addition, the 6N2P-EV has particularly low-microphonics and extremely low overall noise. With its high-current cathodes, the 6N1P tube takes over the function of the driver and buffer stage in a proven, time-tested manner.
Borrowed from Vincent's SA-T7 stand-alone preamp, extremely reliable high voltage power regulation for the tube amplifier has been adopted with the voltage reference tube 85A2. Originally developed for professional measurement technology, the 85A2 provides a low-noise and almost hum-free supply voltage in combination with a semiconductor regulator.
Enhanced Power Amplifier Section
The SV-737's power amplifier is based on the SV-237MK integrated amp, but some important details have been improved and enhanced. For example; the input cascode circuitry has been optimized to ensure even better transient response of the output stage during complex loads. Additionally, the output power has also been increased. Working in combination with the tube preamplifier, the power amplifier stage produces an audio spectrum similar to that of very good single-ended triode amplifiers, but at a much higher level of performance and purity.
Separate Preamp and Power Amp Connectivity
Although the preamplifier and amplifier are carefully designed to complement one another, the connection between them can be disconnected externally, if, for example, you might wish to insert an external DSP between them for room correction. Due to the output impedance of the tube preamplifier, which is significantly reduced compared to the SV-237MK, it can provide a neutral sound when driving common connection cables, such as when using a DSP. You may also wish to split the two sections if you decide to use an external power amp or preamp.
Defeatable Tone Controls / High Quality Headphone Section
Separate tone controls for bass and treble let you tailor the sound to your taste and room requirement. You can also defeat the tone controls by pushing a button on the front panel, which causes the audio signal to bypass the tone control circuitry.
For private listening, the SV-737 includes a high quality headphone output. Use the front panel volume control to adjust listening levels.
A wireless remote comes standard with the SV-737, as does an IEC-type AC power cord.
Bluetooth and WiFi Streaming Capabilities
For Bluetooth streaming, select the Bluetooth input on the SV-737 and activate the Bluetooth connection on your smartphone, tablet or computer and search it for new Bluetooth devices. You will find the SV-737 under the name "Vincent." Choose "Vincent" and start the connection, using your device to select the music you wish to hear through the SV-737.
For WiFi streaming, download the Muzo-Player from the Apple Store or Google Play Store. Select the WiFi input on your SV-737. Then follow the Muzo-Player instructions for connecting and streaming music.
- Frequency Response: 20 Hz - 20 kHz +/- 0.3 dB, 20 Hz - 50 kHz +/- 1 dB
- Output Power RMS / 8 Ohm: 2 x 180 Watt
- Output Power RMS / 4 Ohm: 2 x 300 Watt
- Output Power Class A / 8 Ohm: 2 x 10 Watt
- Harmonic Distortion: < 0.02 %
- Input Sensitivityt: 300 mV
- Signal-Noise Ratio: > 90 dB
- Input Impedance: 47 kOhm
- Max. Power Consumption: 590 Watt
- Inputs: 6 x Stereo RCA, 2 x Optical, 2 x Coaxial, 1 x Stereo Main In
- Outputs: 1 x Stereo Pre Out, 1 x Stereo Rec Out, 4 x 2 Speaker Terminals, 2 x 3,5 mm jack (Power Control)
- Tubes: 2 x 6N1P, 2 x 6N2P, 1 x 85A2
- Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
- Finsh: Silver / Black
Weight: 46.3 lbs.
Dimensions: 16.9w x 16.9d x 6.3h in.
Warranty: 2 yrs. limited electronics, tubes: 90 days
SHIPPING: The shipping weight of the Vincent SV-737 is 50 lbs. Shipment by FEDEX Home Delivery/Insured is FREE if your delivery addresses is within the 48 continental states. If your delivery address is in Alaska, Hawaii, Canada or other location outside of the USA, please call (480) 607-2277) or email email@example.com to determine the shipping cost and to place your order. Duties, taxes and fees on shipments to destinations outside of the USA are NOT included in the price.
